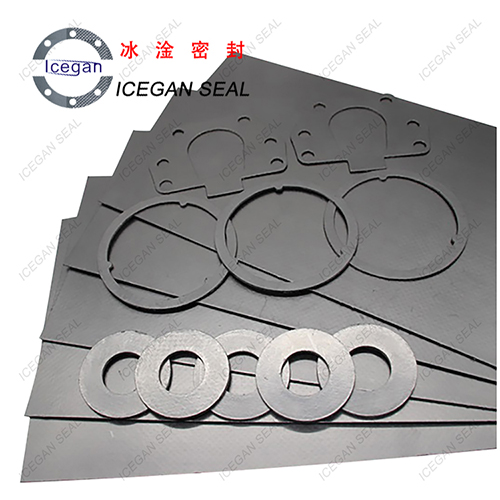

IGRG-04 Reinforced Graphite Sheet with Wire Mesh Insert is made of two layers flexible graphite foils outside and one layer Stainless Steel wire mesh insert, the graphite layers and wire mesh are jointed together with a unique adhesive bonding system that does not delaminate during punching, storage and use.

Reinforcement Material:SS316/SS304 Wire Mesh

Working Temperature:650℃

Working Pressure:140Bar

Bond:Adhesive

Thickness:0.8-6.0mm

Width:0.5M,1M,1.5M

Length:1M,1.5M
