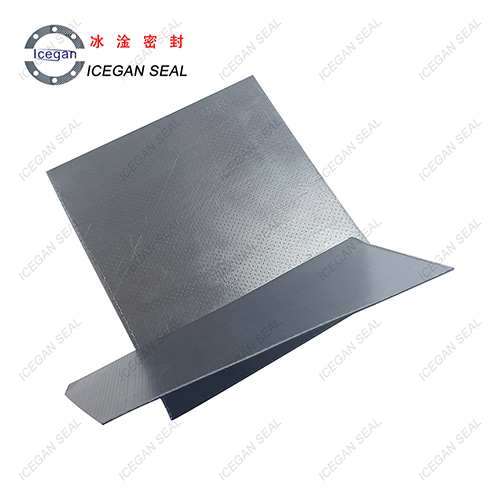

IGRG-03 Reinforced Graphite Sheet with Carbon Steel Tanged is made of two layers flexible graphite foils outside and one layer 0.2mm thick carbon steel(tinplate) perforate foil insert, It is best gasket material for cylinder head gasket.

This item is suitable for making:

Cylinder Head Gasket,Engine Seals Gaskets,Exhaust Seals

gaskets,Reinforced graphite gaskets

Reinforcement Material: 0.2mm thick Carbon Steel(Tinplate) Tanged Foil

Working Temperature:650℃

Working Pressure:200Bar

Bond:Mechanically

Thickness:0.8-6.0mm

Width:0.5M,1M,1.5M

Length:1M,1.5M
