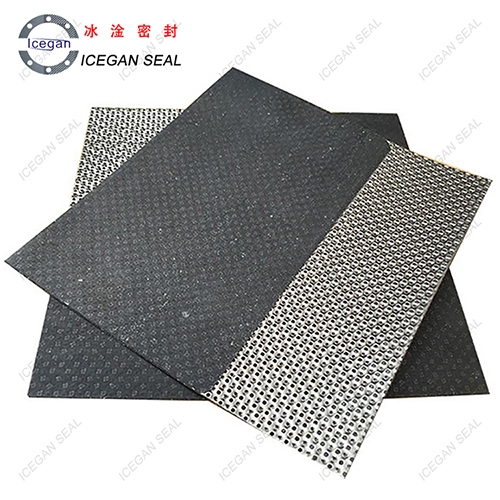

IGNR Reinforced Non-asbestos Composite Sheet with Carbon Steel Tanged

Description Package Information Inquiry

IGNR Reinforced Non-asbestos Composite Sheet with Carbon Steel Tanged is made of two layers non-asbestos fiber paper one layer 0.20-0.25mm perforate carbon steel inserted reinforced, which is extensively applied in manufacturing various motor gaskets. The product has excellent performance in dilatability, sealing equality and long life etc.. Mainly applied in automobile, farming machine, motorcycle and engineering etc.,it is also can be used in high strength gaskets and cylinder gaskets etc.

Thickness:1.0-2.3mm

Width:0.5M,1M

Length:1M,1.2M,1.5M


Density: 1.40g/cm3

Compressibility: 5-15%

Recovery: 40% Max.

Sealing performance: <0.5cm3/min

Performance of heat-resistance: >150-300

Standard Color: Grey,Dark Black.

Style:

I.Reinforced Non-asbestos Sheet with double composite

II.Reinforced Non-asbestos Sheet with one side composite and one side tanged

III.Reinforced Non-asbestos Sheet with double tanged
